Granit V-Fram Marble V-Frame

Di V-shaped granit frem na "Jinan Qing" natura granit matiryal tru mekanik prosesin en manual presishon grindin. Blak luster, yunifom strɔkchɔral tɛkstɔr, gud stebiliti, ay trɛnk, ay hadnɛs, granit V-shaped freym wit advantej lɛk ay prɛsishɔn, nɔ rɔst, asid ɛn alkali rɛsistɛns, nɔ magnɛtizayshɔn, nɔ difɔmeshɔn, ɛn gud wear rɛsistɛns. I fayn fɔ inspekshɔn, mɛzhɔ, mak, ɛn pozishɔn wok na di mɛkanikal prɔsesin ɛn kɔmpɔnɛnt manufakchurin industri dɛn.

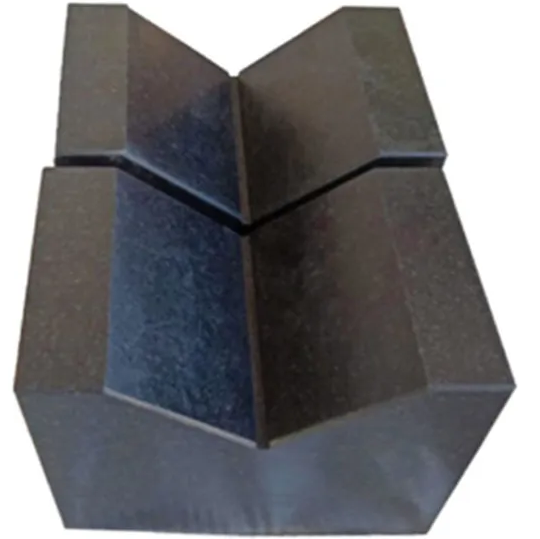

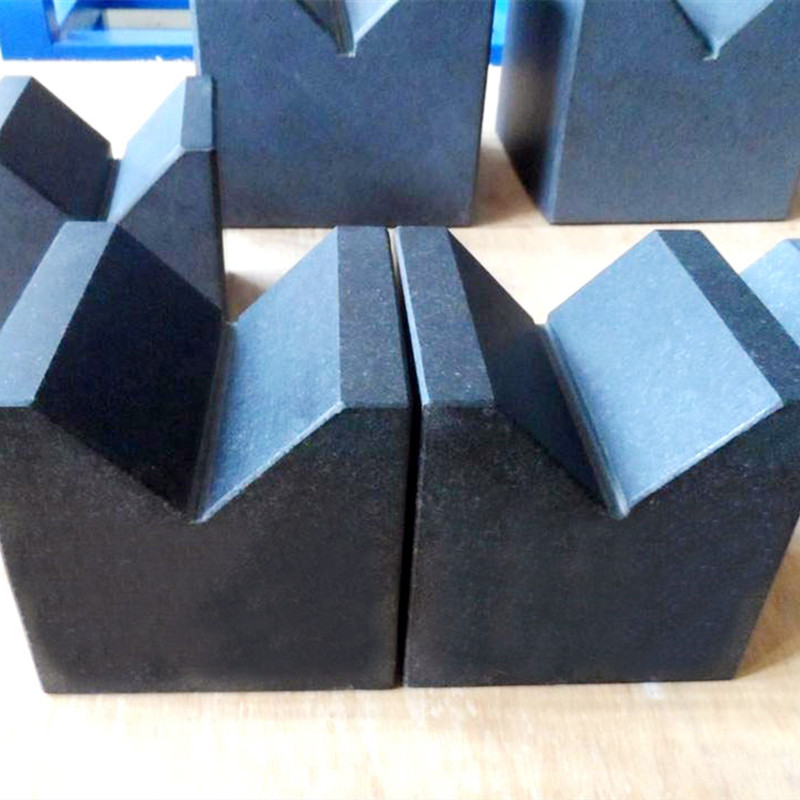

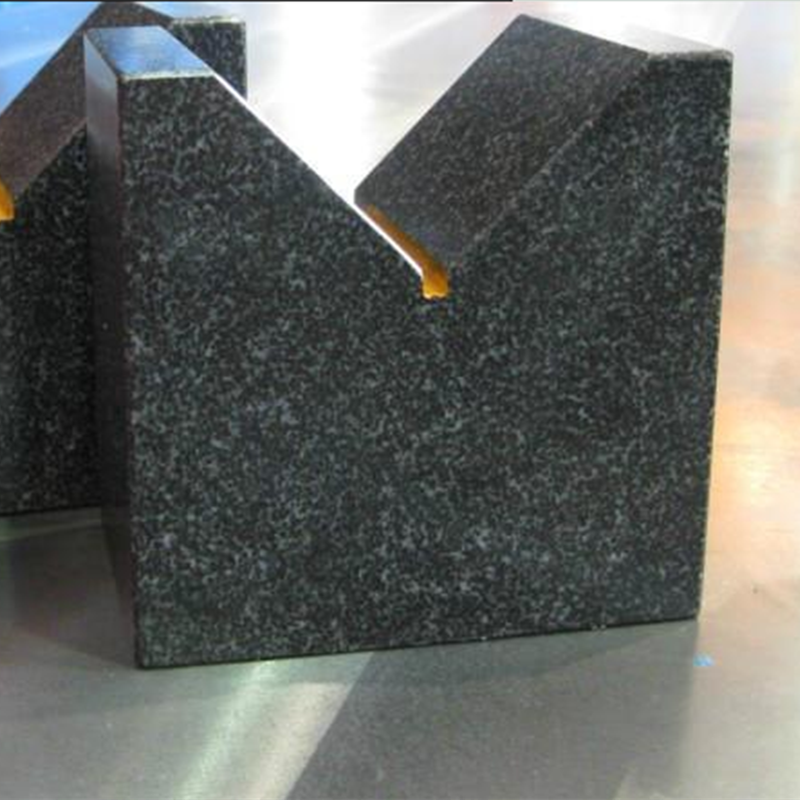

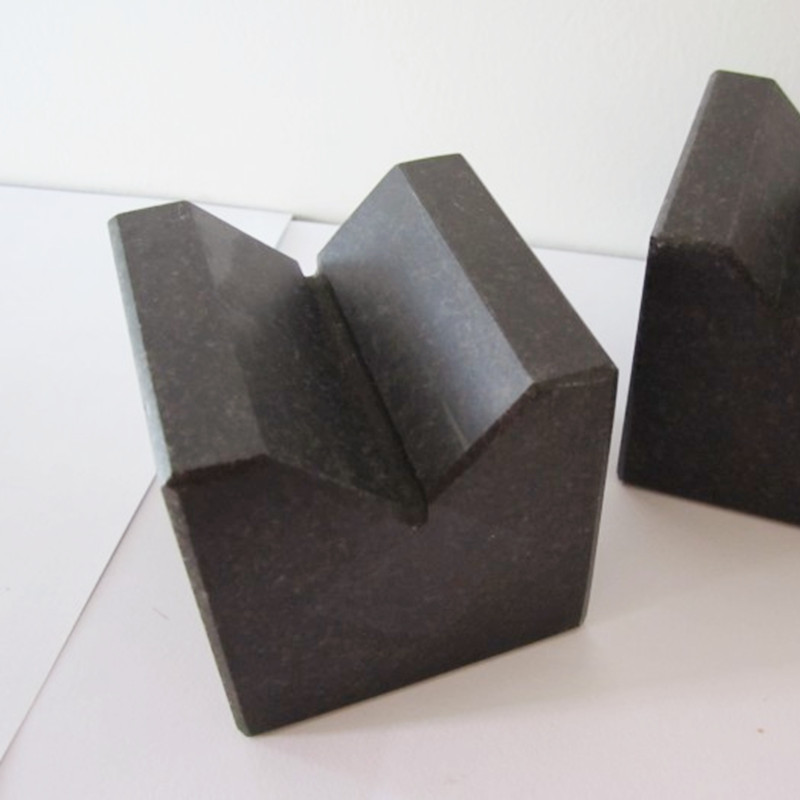

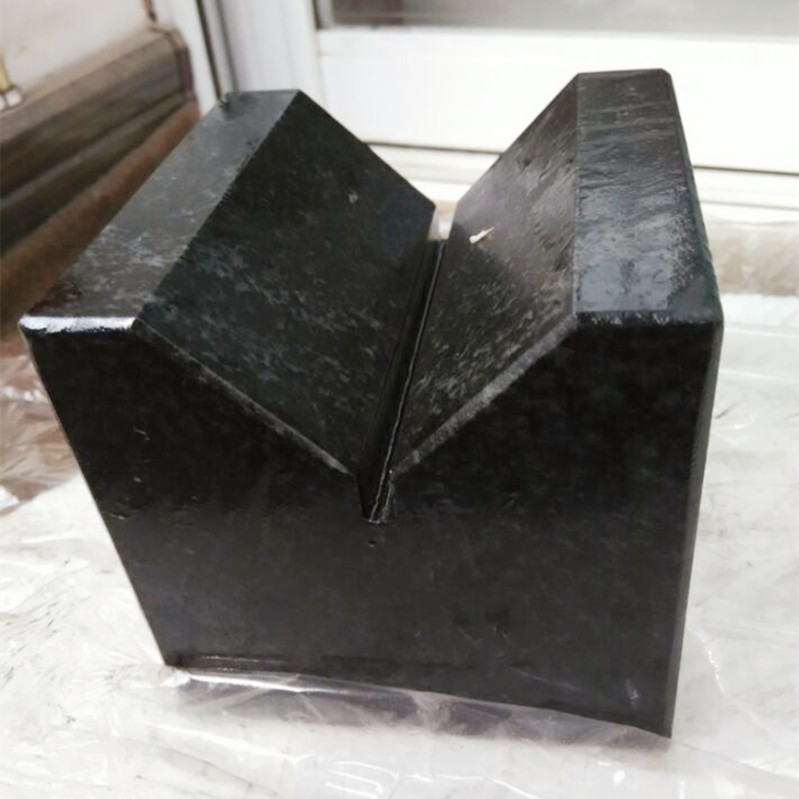

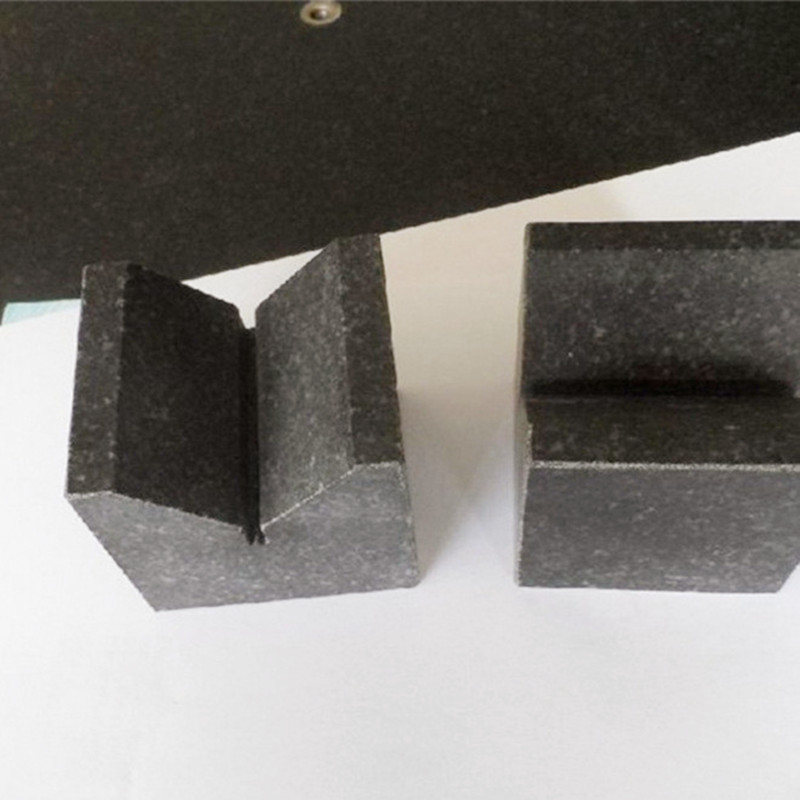

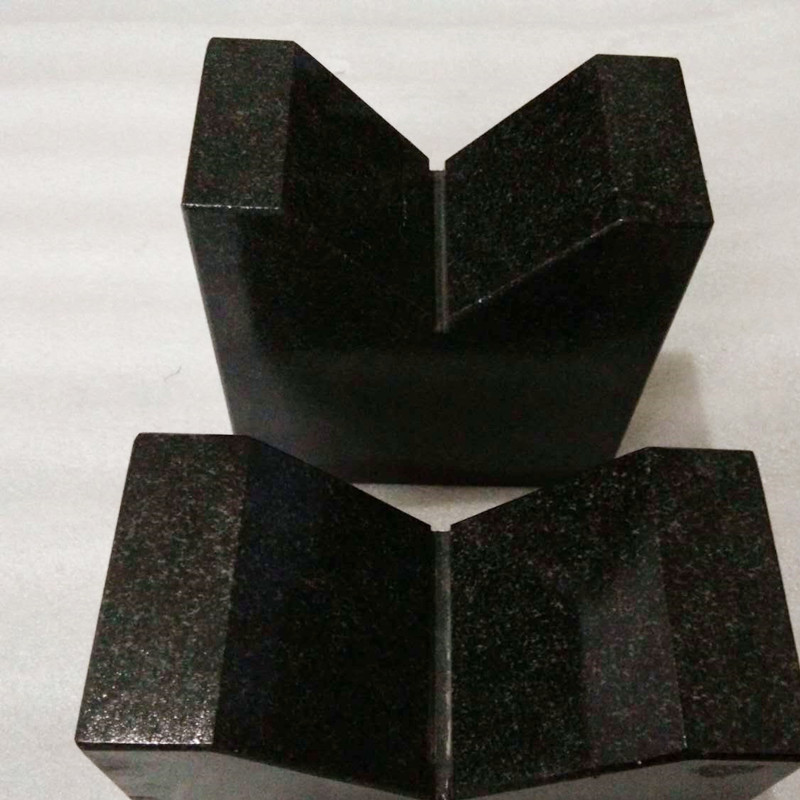

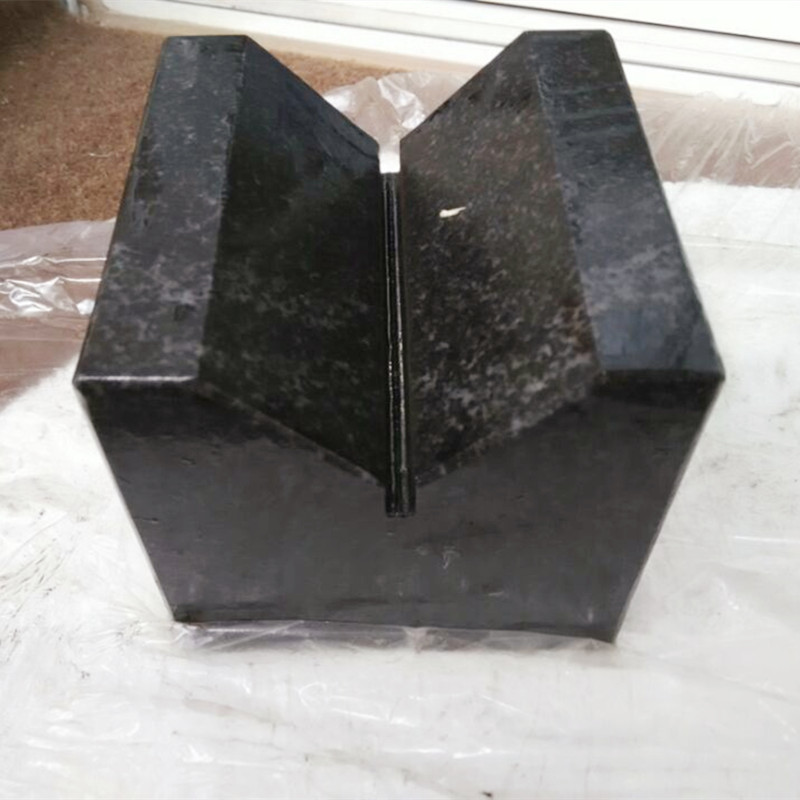

Granite measuring tool v shep blak blok .

Prɛsishɔn fɔ granit V-frɛm: Lɛvɛl 000-1.

Granite V Blocks (V Frame) Aplikeshɔn dɛn: Shaft alaynɛshɔn insay mɛkanikal prɔsesin

Insay mɛkanikal prɔsesin, prɛsis shaft alaynɛshɔn impɔtant fɔ minimiz vaybreshɔn, ridyus wear, ɛn mek shɔ se di bɛst pefɔmɛns fɔ rɔta mashin. Storaen’s Granite V Blocks (V frams) de gi wan stebul, kɔrɛkt sɔlvishɔn fɔ dis chalenj, we de leva di natura prɔpati dɛn fɔ Jinan Qing Granit fɔ deliv prɛsishɔn we nɔ gɛt wan kɔmpitishɔn insay shaft alaynɛshɔn wok dɛn akɔdin to di industri dɛn—frɔm ɔtomotiv manufakchurin to aerospace injinɛri.

1. Di fawndeshɔn fɔ shaft alaynɛshɔn: wetin mek granit V-Frames Excel

Storaen in Granite V blɔk dɛn de gi tri kɔr advantej fɔ shaft alaynɛshɔn:

Dimenshonal stebiliti: Jinan Qing granit (hadnes ≥70hs) bost wan low koefishient of thermal expansion (8.3×10⁻4/°C), mentɛn alaynsmɛnt akkuracy akɔs tempɔret swing (10°C–40°C). Nɔ lɛk stɛl V-blɔk dɛn we de ɛkspɛn/kɔntrak we wi nɔ ebul fɔ no bifo tɛm, wi granit freym dɛn kin kip shaft dɛn we alaynɛd insay ±5μm/m, ivin insay wokshɔp dɛn we nɔ ɔt.
Vaybreshɔn damp: Di ston in granul strɔkchɔ de absɔb 60% mɔ vaybreshɔn pas stɛl, we impɔtant fɔ mek dɛn kɔntinyu fɔ alaynɛshɔn di tɛm we dɛn de mek ay-spid mashin. Wan 160×160×90mm granit V fram de stebul 50kg shaft we de rɔta na 3000 rpm, we de ridyus di tul chata ɛn di surface roughness (RA ≤0.8μm).
Kɔroshɔn rɛsistɛns: Naturally immune to kulant, ɔyl, ɛn mɔstɔ, Storaen Granite V blɔk dɛn nid ziro rɔst prɛvɛnshɔn—i fayn fɔ harsh mashin ɛnvayrɔmɛnt usay stɛl ɔltɛrnativ dɛn de dɔŋ insay mɔnt.

2. Prɛsishɔn gred fɔ ɛvri alaynɛshɔn nid .

Pik di rayt akkurasi lɛvɛl fɔ yu aplikeshɔn .:

Gret 000 (±2μm flatnɛs): dɛn kin yuz am na aerospace kɔmpɔnɛnt manufakchurin, wan 100×100×63mm granit V freym alayns taytaniɔm alɔy shaft dɛn to ASME B89.3.2 standad, we de mek shɔ se kɔnsɛntrisiti insay 5μm fɔ jet injin rɔta dɛn—kritikal fɔ minimiz aerodaynamik drɛg.
Gret 0 (±5μm flatnɛs):Pafɛkt fɔ ɔtomotiv pawatren asɛmbli, wan 200×200×125mm freym pozishɔn dɛn stɛl krankshaft dɛn wit ±0.01mm/m paralel, we de ridyus di bia wear bay 30% insay ay-ɔspawɛl injin dɛn.
Gret 1 (±10μm flatnɛs):Sut dɛn jenɛral industrial wok dɛn lɛk kɔnvayɔr rola alaynɛshɔn, usay wan 300×300×150mm granit V blɔk de mek shɔ se 90° shaft de pepɛndikul to mashin bed dɛn, we de pul bɛlt slip na pak layn dɛn.

3. Ki Aplikeshɔn dɛn fɔ Mɛkanikal Prɔsɛsin .

CNC mashin setup:a storaen granite V fram (Grede 000, 63×63×90mm) de verify di straytnes fɔ CNC lathe spindle shafts we dɛn de instɔl, ɛn mek shɔ se di tul pat dɛn de insay ±0.005mm fɔ prɛsishɔn mashinin fɔ di mɛdikal divays kɔmpɔnɛnt dɛn.
Giabɔks Asɛmbli:Insay ebi ebi ikwipmɛnt manufakchurin, wan 160×160×90mm granit V blɔk alayns planɛt gia shaft to insay 8μm, we de ridyus nɔys ɛmishin ɛn ɛkstɛnd gia layf bay 25% insay kɔnstrɔkshɔn mashin.
Aerospace engine testing:Wi koroshon-resistant fram dem de sopot Inconel shafts durin fatigue testing, maintain alaynsment tru 10,000+ lod saikls witout dimensional drift—kritikal fo validate enjin pefomans anda ekstrim kondishon.

4. Storaen in kɔmitmɛnt fɔ alaynɛshɔn ɛksɛlɛns .

Certified Precision: Dɛn kin kalibrayt ɛvri Granite V blɔk bay we dɛn de yuz laser intafɛromita, wit traysabl sɛtifiket to GB/T 20428-2006 ɛn ISO 1101 standad, we de mek shɔ se dɛn de fala di strɔng kwaliti ɔdit dɛn.
Kastom Sɔlwɛshɔn: Nid 500×500×200mm freym wit rɛs mawntin ol fɔ ɔtomatik asɛmbli layn dɛn? Wi OEM tim de deliver bespoke designs in 4–6 wiks, optimized fɔ yu yunik shaft alaynɛshɔn nid dɛn.
Longevity guarantee: Bak wit 2 ia warranty agens surface wear or dimensional chenj, wi granite v frams outlast steel alternatives by 5x, we de giv total kos sevings of $1,500+ per tul ova in layfspan.

Nɔ lɛf shaft alaynɛshɔn to chans—trɔst Storaen in Granit V blɔk fɔ deliv di stebiliti, prɛsishɔn, ɛn durabiliti we di mɔdan mɛkanikal prɔsesin de aks fɔ. Ilɛksɛf na kalibrayt CNC mashin dɛn, gɛda gia bɔks dɛn, ɔ tɛst di ɛrospɛs injin dɛn, wi granit V freym dɛn de mek shɔ se ɛvri shaft alaynɛd to pafɛkt, i de mek di tɛm nɔ de wok, i de ridyus di west, ɛn i de ɛlevɛt di kwaliti fɔ di tin dɛn we yu dɔn mek. Eksplore wi renj of granite v frams tide en expiriens di difrens of ston-enjinered precision.

Granite V Blocks (V-Frame) Keya: Klin & Stɔrej Bɛst prɔsis

Prɔpa mentenɛns na di ki fɔ kip di prɛsishɔn ɛn lɔng layf fɔ yu granit V blɔk dɛn (V-Frames). Storaen in Premium Granite V-Frames, we dɛn mek frɔm Jinan Qing Granite, dɛn dɔn ɛnjinɛri fɔ mek dɛn nɔ kip dɛn smɔl—bɔt fɔ fala dɛn bɛst we ya de mek shɔ se dɛn kɔntinyu fɔ kɔrɛkt ɛn dɛn nɔ de pwɛl fɔ lɔng lɔng tɛm, ivin na harsh industrial envayrɔmɛnt dɛn.

1. Di klin we dɛn de klin ɛvride: Rimov di tin dɛn we gɛt dɔti jisnɔ .

Granite in nɔ-porous surface de agens mɔs kɔntaminɛnt, bɔt fɔ klin ɔltɛm de mek di rɛsɛdyu bildup we kin afɛkt alaynɛshɔn .:
Tul dɛn we dɛn nid: Sɔft maykrofayba klos dɛn, pH-nyutral klin (ɛgz., Storaen in granit kia sɔlvishɔn), ɛn wan rɔba skwei fɔ stubborn debris.

Step-by-step .:

Wap di V-Frame sɔfays wit dray klos fɔ pul di dɔst ɔ mɛtal sheb we nɔ tay—kritikal fɔ mek di ±2μm flatnɛs we de na gred 000 granit V blɔk dɛn.
Dilute di klin (1:10 wit distil wata) ɛn aplay to wan dɔmp klos, jisnɔ skrab ɔyl ɔ kolant stɛyn. Nɔ ɛva yuz asid/alkaline sɔlvɛnt dɛn—dɛn kin et di granit sɔfays ova tɛm.
Dray gud gud wan wit klos we nɔ gɛt lint, fɔ mek shɔ se nɔ mɔs nɔ de na di V-groove usay shaft dɛn kin mek kɔntakt.

Pro tip: fכ hεvi mashin envayroment, klin afta εvri shift fכ prεvεnt abraziv patikyula (εgz., aluminium כksid) fכ skrach di 320-grit grכn sεf (ra ≤0.8μm).

2. Stɔrej Strateji: Protɛkt agens impak & tɛmpracha shift dɛn .

Stɔ yu granit V blɔk dɛn fɔ mek di dimɛnshɔnal stebiliti kɔntinyu ɛn protɛkt di V-groove ed dɛn .:

Short-tem storage (≤1 wik .):

Put pan wan vaybreshɔn-dampenin rɔba mat (5mm tiknes) pan klin wokshɔp bɛnch, mek shɔ se 100mm kliarens frɔm ɔda tul dɛn. Storaen in 160×160×90mm V-Frames, we we 18kg, de de fayn fayn wan insay ples ivin di tɛm we dɛn de du mil ɔpreshɔn dɛn we de nia de.

Lכng tεm stכrej (≥1 mכnt .):

Wrap insay asid-fri tisu pepa ɔ anti-statik bɔbul wrap fɔ shild frɔm humiditi (ideal RH: 40%–60%).
Stɔ ɔrizɔntal wan pan wan flat shelf wit fom sɔpɔt ɔnda di V-groove ɛn bays, we de sheb di wet ivin fɔ mek di 0.05mm/m sag we kin apin na di freym dɛn we nɔ sɔpɔt.
Mentɛn stɔrɔj tɛmpracha na 20°C ±2°C—Jinan Qing Granit in lɔw tɛmral ɛkspɛnshɔn (8.3×10⁻⁄4555) min smɔl risk fɔ wɔp, bɔt di ekstrim fluktueshɔn kin afɛkt kalibreshɔn kɔnsistɛns.

Avɔyd: Hang ɔ vertikal stɔrɔj, we kin strɛs di V-grɔv edj dɛm—Storaen dizayn ɔl di granit V blɔk fɔ ɔrizɔntal stebiliti, wit riinfɔs bays sɔfays fɔ sikyu shelf plesmɛnt.

3. Mentɛnans Do’s & Don’ts

Du:

Inspek kwata fɔ smɔl chips (≤0.5mm) yuz 10x magnifya—Storaen de gi on-sayt resurfacing fɔ damej freym dɛn, we de briŋ bak flatnɛs to ɔrijinal gred dɛn.
Yuz Storaen in sɛtifiket kalibreshɔn savis ɛvri ia fɔ chɛk fɔ si if yu de fala GB/T 20428-2006, mek shɔ se yu granit V blɔk dɛn de mentɛn dɛn prɛsishɔn we dɛn dɔn tɛst na di faktri.

Nɔ:

drop כ strik di V-frame—ivin 1kg impak kin chip di V-grov edj, we kin afekt shaft alaynsmεnt bay 15μm.
Stɔ wit magnɛtik tul dɛn—Granite in nɔ-magnɛtik prɔpati (≤3μt) na fayn tin fɔ magnɛtik fil ɛnvayrɔmɛnt, bɔt magnet dɛn we de nia de kin atrak dɔti dɛn we de skrach di sɔfa.

4. Storaen in kia-ɛnhans dizayn ficha dɛn .

Wi Granite V Blocks dɛn bil fɔ mek i izi fɔ mek dɛn mentenɛns am .:

Raund edj dɛm: 3mm Chamfers na ɔl kɔna ridyus chip risk we dɛn de handle, wan kɔmɔn ishu wit shap-ed ɔltɛrnativ dɛm.
Anti-statik kot (opshɔnal): Fɔ ilɛktroniks manufakchurin, pik V-frɛm wit 5μm kɔnduktiv kɔtin we de ripɛl dɔst patikyula, we impɔtant fɔ prɛsishɔn shaft alaynɛshɔn na klin rum ɛnvayrɔmɛnt.
Kastom Stɔrej Kes dɛm: Ɔda wan fom-layn hadwud kes (we de fɔ ɔl di saiz dɛm) wit CNC-kat insɛt dɛm we de kres di V-groove ɛn bays, we de protɛkt yu invɛstmɛnt we yu de transpɔt bitwin di fasiliti dɛm.

Fɔ kia fɔ yu Storaen Granite V blɔk dɛn simpul wit dɛn tin ya—klin jisnɔ, kip smat wan, ɛn yuz wi dizayn dɛn we go mek wi mentenɛns. Bay we yu protɛkt dɛn natura stebiliti ɛn prɛsishɔn, yu de mek shɔ se ɛvri shaft alaynɛshɔn task mit di ays industrial standad, frɔm ɔtomotiv asɛmbli to aerospace metrology. Trust in Storaen in enjinering fɔ deliv V-Frames we tinap fɔ di tɛst fɔ tɛm—bikɔs di rayt kia nɔ fɔ kɔmplikt we prɛsishɔn nɔ de negoshiable.
