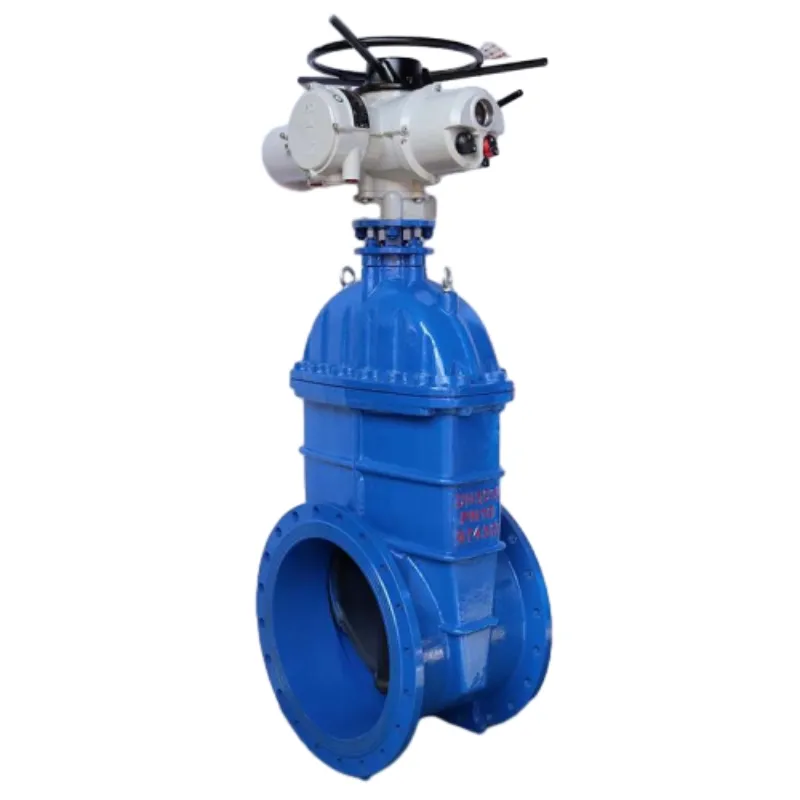

Ilektrikal soft sil get valv .

Name: Difrɛn kayn ilɛktrik naif get valv fɔ wata saplae fɔ sɛl .
Brand: Metal Valve Measuring Tool Cast Iron Welding Table Plug Gauge Manufacturer
Availability: InStock
Rating: 4.5 (89 reviews)

di strכkchכ we dεn mכnt pan di ilektrikal sכft-sial get valv de ridyus di kכnekt bolt dεm fכ di valv bכdi, i de mek di valv bכku bכku wan εn i kin ebul fכ כvakom di inflכεns fכ di wet fכ di sistεm pan di nכmal opεreshכn fכ di valv. I de ɔvakom di dɛfekt dɛm fɔ jenɛral get valv lɛk po silin, ɛlastik fatigue ɛn izi kɔrɛshɔn. I de yuz di kɔmpɛnshɔn ifɛkt fɔ di ɛlastik get plet fɔ prodyuz smɔl difɔmeshɔn fɔ ajɔst wan gud siling ifɛkt. I gɛt di klia advantej dɛn fɔ layt switch, rili silin, gud ɛlastik mɛmori ɛn lɔng savis layf.

CONTACT NOW PDF Download

Details

Tags

Ilektrikal soft sil get valv .

【Wɔk Tɛmpratura】0～80℃

【Suitable medium】wata, stim, oil, etc

【Aplikeshɔn】Ilektrisiti, Kɔnstrɔkshɔn, Envayrɔmɛnt Protɛkshɔn, Wata Tritmɛnt, Wata Sapɔt ɛn Drenaj, ɛn ɔda wan dɛn

Produkt Advantej dɛn .

1.QT450-10 Ductile Iron Body, 3 Levels Sferoidization Rate, di tensile strכng na 450MPa, di εkstenshכn rεt de ova 10%. I nɔ izi fɔ krak ɛn friz krak.

2. Epoxy coating fɔ ɔl tu di valv insay ɛn na do. Ova 250μm kotin tiknes. Effectively prevent valve bodi koroshɔn ɛn rɔst. Dɛn kin yuz am na di siwej sistɛm.

3. 50% rɔba kɔntinyu EPDM we dɛn kɔt DI wedj. Dɛn kin kɔt di rɔba fayn fayn wan wit wedj, we nɔ izi fɔ fɔdɔm.

4. 2CR13 valv stem. Tri O-ring siling dizayn. Ridyus frikshɔn rɛsistɛns We yu de swich, avɔyd midul ɛksplɔshɔn.

5. Brass stem nat ɛn posishun divays, swich smol smol ɛn avɔyd jam we yu de wok.

6. IP65 Protekshɔn Lɛvɛl Ilɛktrik Aktyuator .

Paramita Infɔmeshɔn .

Rid mɔ bɔt di kayn get valv dɛn .

Nem	Dizayn ɛn mek .	Fes to fes lɔng .	Prɛsh Tɛst .	Top flange na di .
Rifrɛns Stɛndad .	CJ/T 216 na di . na di . ANSI C515 na di .	GB/T 12221 ASME B16.10.	CJ/T 216 na di . na di . API 598	GB/T 17241.6. ASME B16.1.

Nem	1-Body	2-Wedge	3-Stem	4-Ilɛktrik aktyuator .
Tin dɛn	DI	DI+EPDM	2Cr13	Kɔmpɔnɛnt .

Nominal saiz .			PN16		150LB
DN we de na di .	NPS(inch dɛn)	L	K	N-φ Di wan dɛn we de na di wɔl.	K	N-φ Di wan dɛn we de na di wɔl.
50	2”	178	125	4-19	120.7	4-19
65	2 1/2”	190	145	4-19	139.7	4-19
80	3”	203	160	8-19	152.4	4-19
100	4”	229	180	8-19	190.5	8-19
125	5”	254	210	8-19	215.9	8-22
150	6”	267	240	8-23	241.3	8-22
200	8”	292	295	12-23	298.5	8-22
250	10”	330	355	12-26	362	12-25
300	12”	356	410	12-26	431.8	12-25
350	14”	381	470	16-26	476.3	12-29
400	16”	406	525	16-30	539.8	16-29
450	18”	432	585	20-30	577.9	16-32
500	20”	457	650	20-34	635	20-32
600	24”	508	770	20-37	749.3	20-35
700	28”	610	840	24-37
800	32”	660	950	24-40
900	36”	711	1050	28-40
1000	40”	811	1170	28-43
1200	48”	1015	1390	32-49
