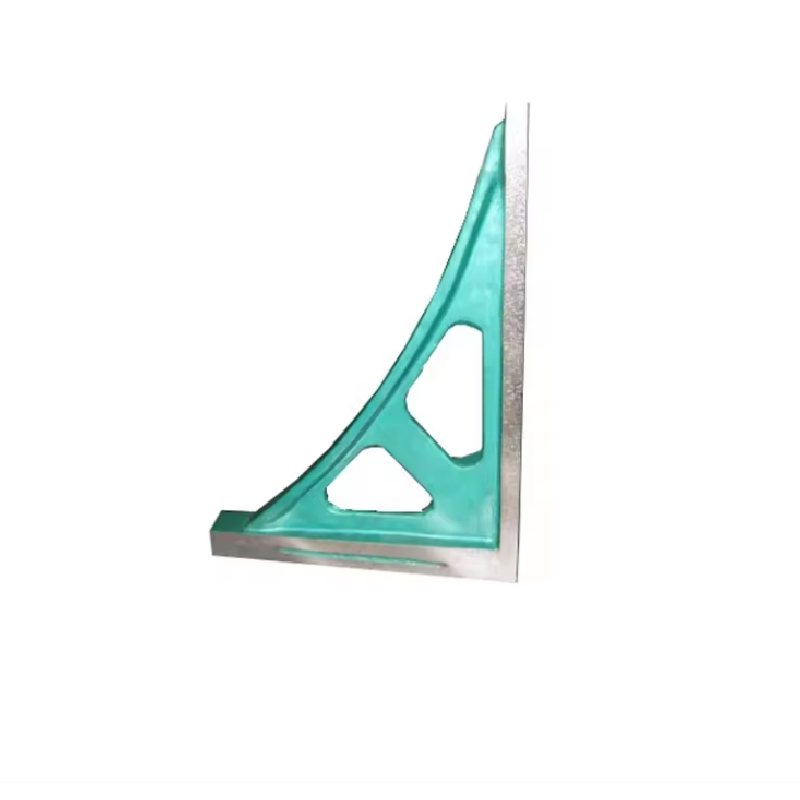

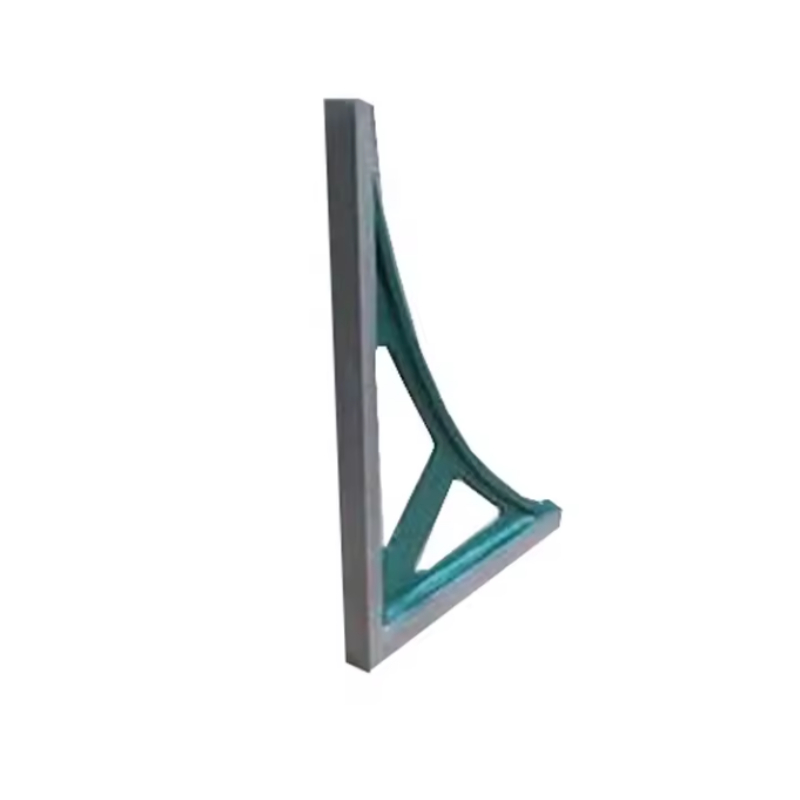

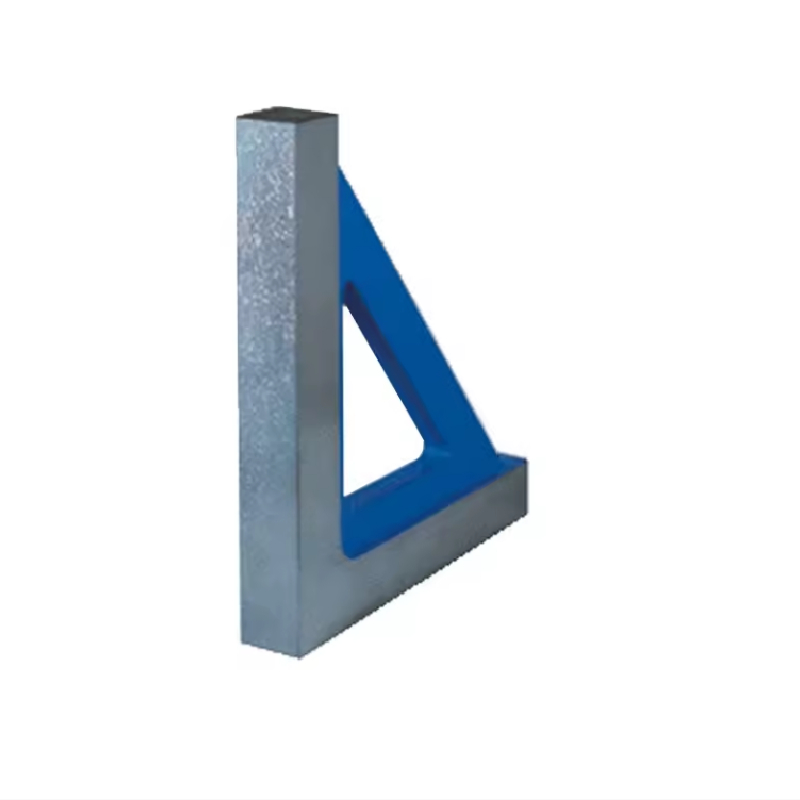

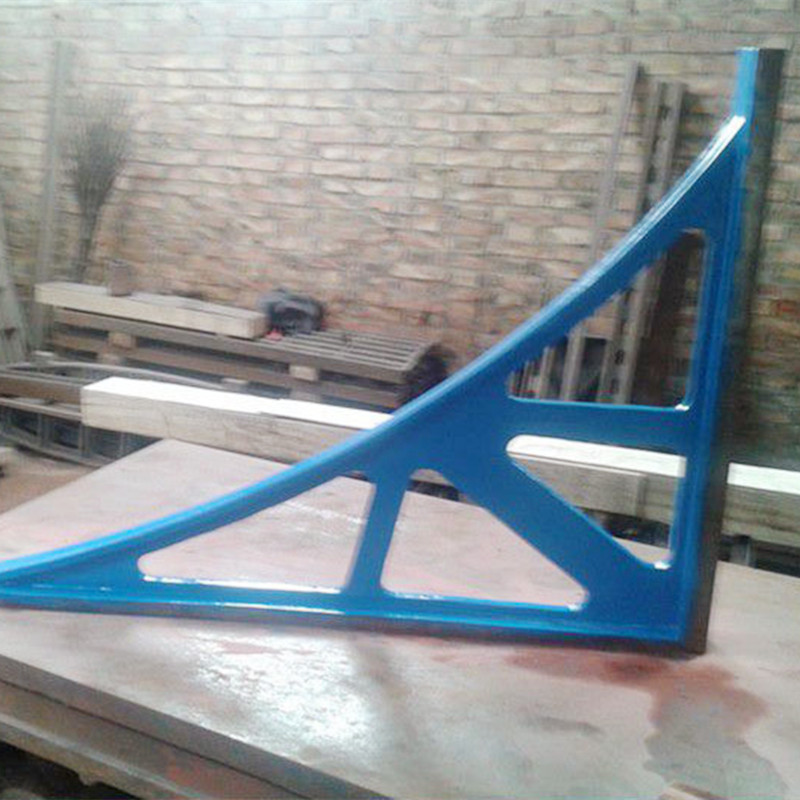

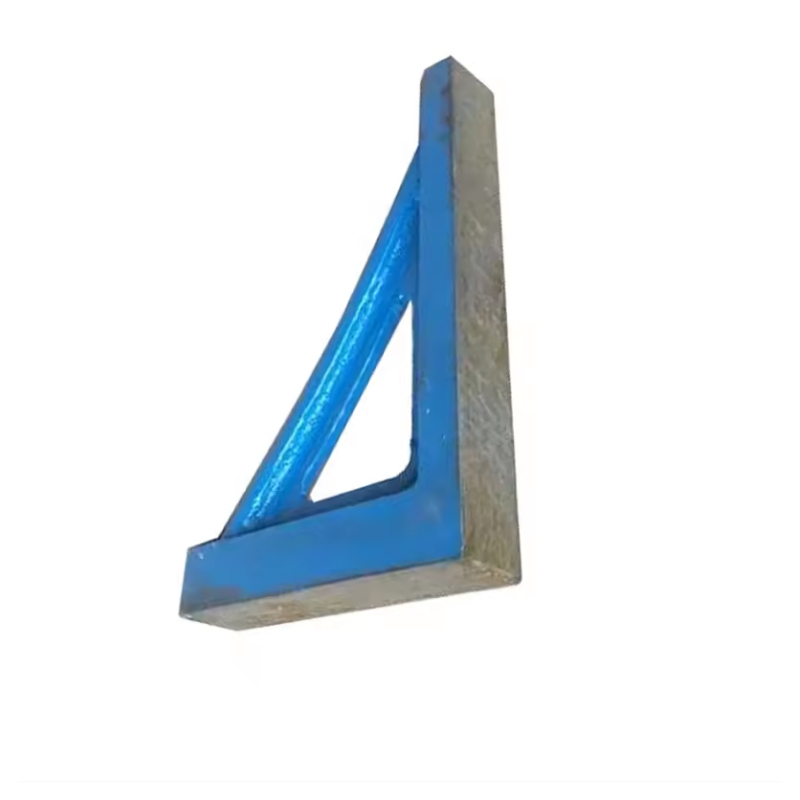

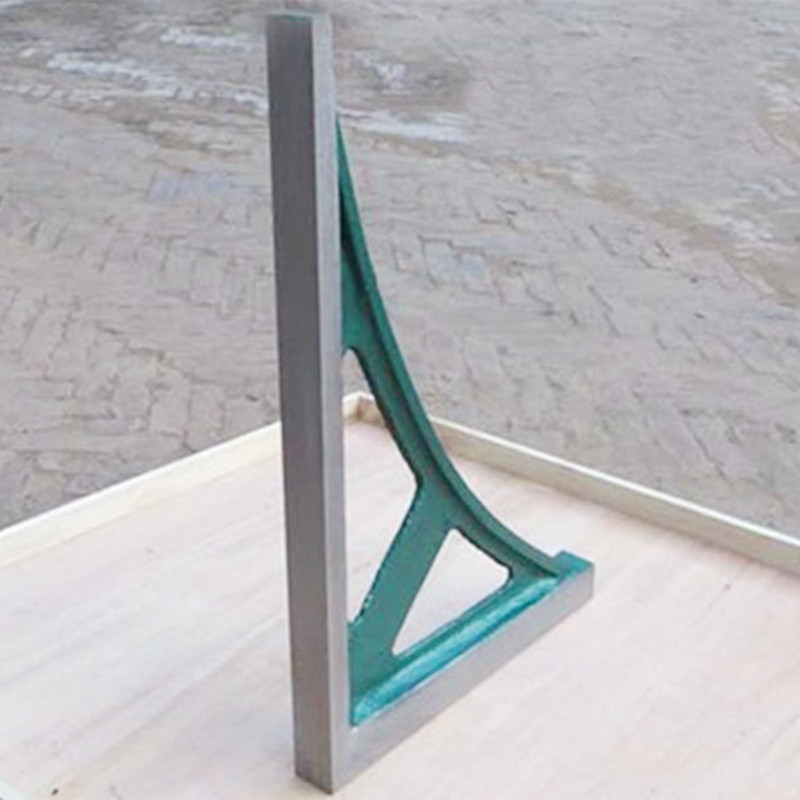

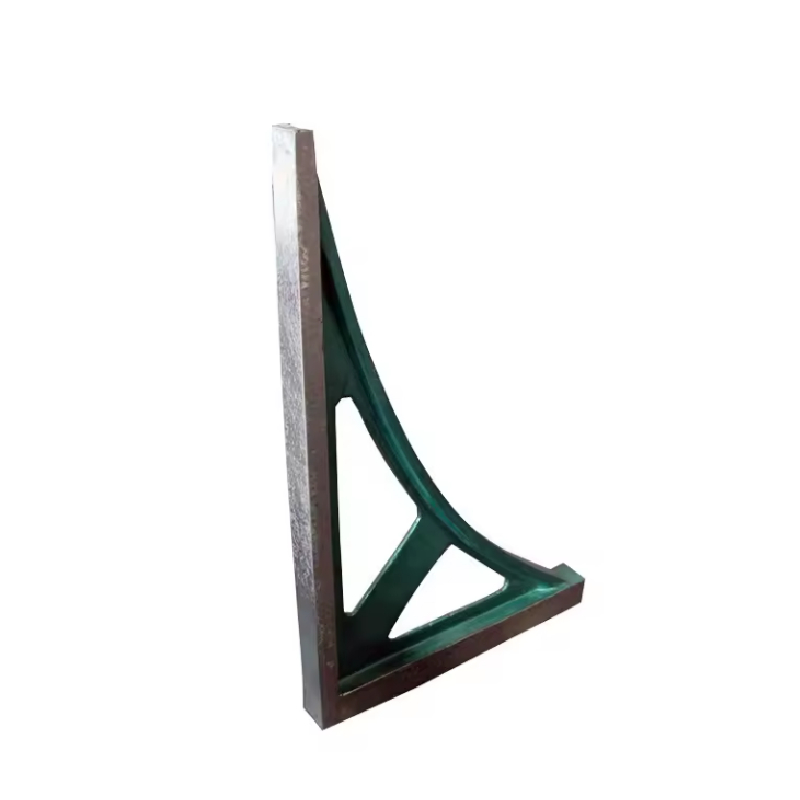

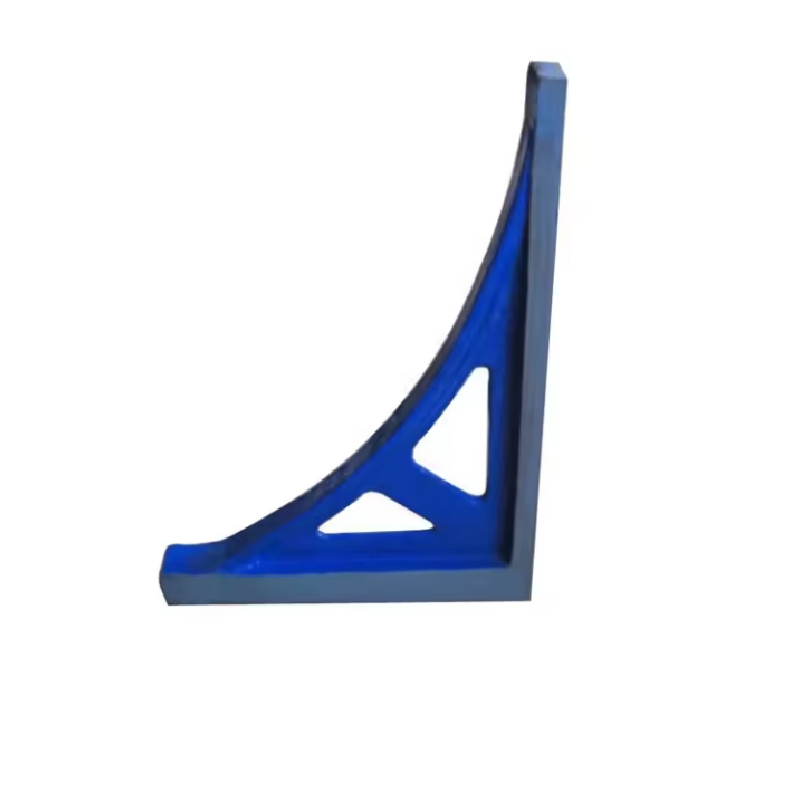

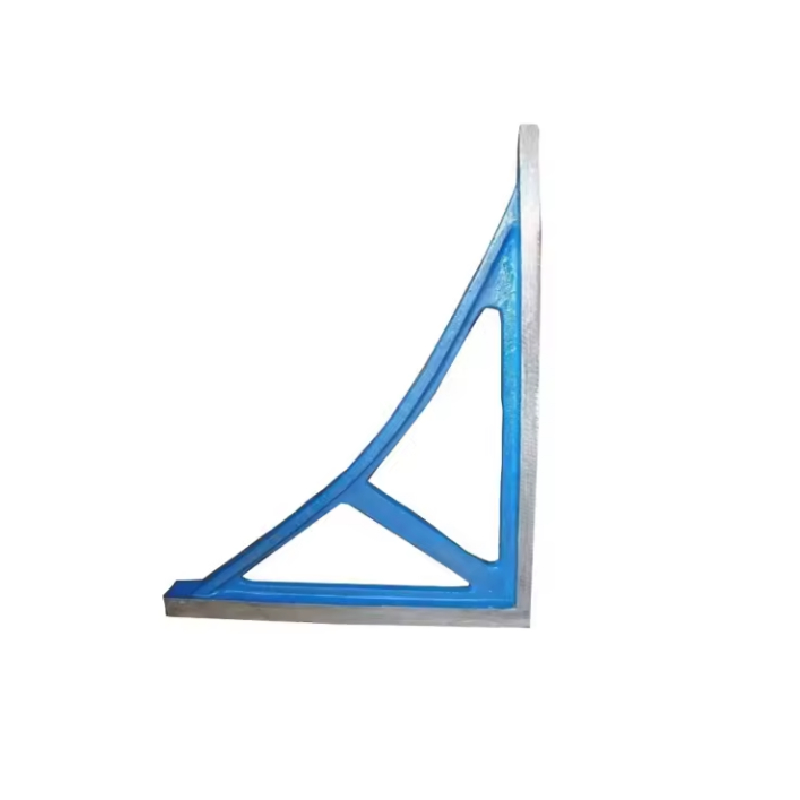

Metal rayt angul rula .

Ples we dɛn kɔmɔt:Hebei, Chaina

Waranti: 1 Ia

Sapɔt we dɛn kɔstɔmayz:OEM, ODM, OBM

Brand Name:Storan

Mɔdal Nɔmba:2013

Material:Kast ayɛn

Akkurayt:Kɔstɔmayz .

Opareshɔn Mɔd:Kɔstɔmayz .

Item Weit:Kɔstɔmayz

Kapasiti:Kɔstɔmayz .

Material:HT200-300.

Spesifikɛshɔn:Si fɔm we dɛn ataya ɔ we dɛn dɔn kɔstɔmayz

Surface Treatment:Hand-scraped ɔ finish-milling

Fawndri Proses:Fawndri Proses Sand Kastin

Peint:Wɔk sɔfays we dɛn kɔba wit piklin ɔyl

Surface Coating: Pik ɔyl pik ɔyl .

Tempracha we de wok:(20±55.)℃

Prɛsishɔn gred:1-2.

Packaging:Plywood bɔks

Kastɔm Dizayn: Avaylabl

Lid tɛm .

Di tin dɛn we dɛn yuz: HT200-250
Spesifikɛshɔn: Si fɔm we dɛn ataya ɔ kɔstɔmayz
Di tritmɛnt we dɛn de gi di sɔfa: Dɛn kin yuz an-skrɛp ɔ fɔ mek dɛn ebul fɔ mek di say we dɛn dɔn fɔ wok .
Fawndri Prɔses: Sand Kastin
Peint: Praymɛnt Peint
Surface Coating: Wok we de wok we dɛn kɔba wit piklin ɔyl ɛn nɔ wok sɔfays we dɛn kɔba wit antirɔst pent
Tempracha we de wok: (20±55.)℃
Prɛsishɔn gred: 1-2.
Packaging: Plywood bɔks

Metal rayt angul rula aplikeshɔn dɛn: Machining & layout inspekshɔn
​

Insay prɛsishɔn manufakchurin, wan mɛtal rayt-ɛngl rula de mek shɔ se prɛsis 90° rilayshɔn dɛn we rili impɔtant fɔ mashin ɛn layout akkuracy. Storaen in 90-digri angul skwea sɔlvishɔn dɛn kam togɛda fɔ du tin fɔ lɔng tɛm, prɛsishɔn, ɛn versatility fɔ mit ISO 1101 ɛn GB/T 6092 standad, we de gi pawa wokshɔp fɔ ajɔst jɔyometrik pafɛkt.​

1. Machining: Fɔ mek shɔ se pɔrpindikul prɛsishɔn .​

Storaen in mɛtal rayt-ɛngl rula impɔtant fɔ mek dɛn mek mi mil, drɔ, ɛn grind:​

Mashin tul alaynɛshɔn: Wan 300mm stɛl rayt-ɛngl rula (HT200 kast ayɛn) de chɛk CNC mil spindle vertikal insay ±5", we de ridyus di tul wear bay 20% ɛn skrap ret we i de mashin ɔtomotiv transmishɔn kes dɛn.​
Fikscha kalibreshɔn: Fɔ aerospace fiks, wi rayt-ɛngl skwea rula wit han-skrep finish (RA ≤1.6μm) de mek shɔ se klamp sɔfays dɛn pafɛkt skwea, we de mentɛn ±0.01mm pɔrpindikulɔri na jet injin brakɛt mashin. HT200 in vaybreshɔn-dampening prɔpati dɛn de stebul mɛzhɔmɛnt dɛn na nɔys ɛnvayrɔmɛnt dɛn.​

2. Layout Inspekshɔn: Jiometrik Intɛgriti Assurans .​

Insay prɛ-mashin ɛn fayn chɛk, wi mɛtal rayt-ɛngl skwea tul dɛn de gi rilaybiliti:​

Sheet Metal Fabrication: Na 500mm rayt-ɛngl triangul rula wit magnɛtik bays mak 90° bɛnd pan stenlɛs stiɛl shit, we de ridyus trial ajɔstmɛnt bay 30% fɔ mɛdikal divays ɛnklɔzhɔ ɔ ilɛktrik panɛl.​
Big strɔkchɔ alaynɛshɔn: Wan 1000mm rayt trayangul rula (klas 2 prɛsishɔn) de chɛk Kreyn Rel sɔpɔt dɛn pɔrpindikul, fɔ mek shɔ se dɛn sheb di lod sef wan. Stres-riliiv kast ayɛn de agens dimɛnshɔnal drift insay 40°C ɔt.​

3. Storaen in dizayn advantej fɔ industrial nid dɛn .​

Material & Size Options: Pik wan stɛl rayt-ɛngl rula (stɛnlɛs fɔ marin ɛnvayrɔmɛnt) ɔ wan HT200 kast ayɛn (hevi mashin). Sayz frɔm 100mm to 1000mm sus bɛnch task to ovasayz kɔmpɔnɛnt dɛn.​
Prɛsishɔn gred: Gret 0 (±2") fɔ aerospace labs, gred 1 (±5") fɔ mashin, gred 2 (±10") fɔ layout—ɔl di CMM-we dɛn kin chɛk to intanashɔnal standad.​
Ergonomic Durability: Di handel dɛn we gɛt rɔba de ridyus di taya; 5μm anti-kɔroshɔn ɔyl de ɛkstɛnd tul layf bay 2x insay harsh wokshɔp, we de autlast ɔltɛrnativ dɛn we nɔ kɔt.

​

4. Indastri impak: Efisiɛns & Kɔmplians .​

Otomotiv: Wan 400mm mɛtal rayt-ɛngl skwea de mek shɔ se di domɔt hinj brakɛt dɛn na 90° to bɔdi panɛl dɛn, we de mek di briz nɔys nɔ de—we wi 1 ia skwea drift warranty de bak.​
Hevi ikwipmɛnt: Wan riinfɔs rayt-ɛngl triangul rula alayns buldoza bled de mawnt fɔ optimal efyushɔn, de mentɛn prɛsishɔn afta 10,000+ awa fɔ ɔpreshɔn.​

Storaen in mɛtal rayt-ɛngl skwea sɔlvishɔn dɛn de gi di prɛsishɔn ɛn di tɛm we dɛn nid fɔ mek mashin ɛn layout wok dɛn. Enjinia fɔ ripit akkuracy ɛn lɔng layf, wi tul dɛm de ridyus sɛtup tɛm, ɛp fɔ mek kwaliti kɔntrol, ɛn mit strikt industrial standad dɛm—yu trɔst patna fɔ skwea chalenj dɛm.

Metal rayt angul rula Advantej dɛn: Stres-riliv fɔ yuz fɔ lɔng tɛm

Insay industrial mɛtrɔlɔji, di rilaybiliti fɔ wan mɛtal rayt-ɛngl rula de hinj pan in abiliti fɔ mentɛn prɛsishɔn ova ia dɛn we dɛn dɔn yuz am bɔku bɔku wan. Storaen enjinia dɛn in mɛtal rayt-ɛngl skwea tul dɛn wit wan impɔtant prɔses—strɛs rilif—fɔ pul intanɛnt tɛnsiɔn, deliv di dimɛnshɔnal stebiliti we nɔ gɛt wan kɔmpitishɔn fɔ wokshɔp usay akkuracy ɛn durability nɔ de negoshiable. Na dis na aw wi strɛs-riliv dizayn de chenj ɔdinari rula dɛn to lɔng-last prɛsishɔn inschrumɛnt dɛn .:

1. Di Sayns fɔ Strɛs Rilif: Wetin mek i impɔtant .

Kast ɔ mashin de introduks rɛsɛdyual strɛs dɛn we de mek smɔl smɔl wɔping—te dɛn rili fil fayn fayn wan .:

Tu-stej Annealing Process: Wi rayt-ɛngl trayangul rula de ɔnda 550°C ɔt tritmɛnt fɔ 4+ awa, soft di mɛtal (HT200 kast ayɛn na 180–240hb; stenlɛs stiɛl na 150–200hb) fɔ rilis 90% pan di mashin-indyuz strɛs. Dis de ridyus di lɔng tɛm difɔmeshɔn bay 70% we yu kɔmpia am wit ɔda we dɛn we dɛn nɔ trit, fɔ mek shɔ se 90° skweanɛs de kɔntinyu fɔ de insay ±5" tolɛreshɔn fɔ pas tɛn ia.
Maykrostrakchɔ ɔptimayzeshɔn: Fɔ kast ayɛn mɔdel, strɛs rilif de protɛkt wan yunifom pearlitik strɔkchɔ we de agens vaybrɛshɔn-indyuz maykro-muvmɛnt—kritikal fɔ mentɛn akkuracy di tɛm we CNC mashin kalibreshɔn ɔ aerospace kɔmpɔnɛnt inspekshɔn.

2. Sastayn prɛsishɔn insay diman ɛnvayrɔmɛnt dɛn .

Storaen in strɛs-riliv mɛtal rayt-ɛngl rula pas kɔmpitishɔn dɛn na tri men eria dɛn:

Dimensional stabiliti: Wan 600mm stɛl rayt angul rula (staynlɛs stiɛl 304) de mentɛn Klas 1 prɛsishɔn (≤0.01mm/m skwea) akɔs tɛmpracha swing (10°C–40°C), we nɔ trit rula dɛn na di sem saiz kin deviet bay ±0.05mm/m—m—nɔ gɛt pawa fɔ mek dɛn gɛt pawa fɔ mek dɛn gɛt pawa fɔ mek dɛn gɛt pawa.
Impact Resistance: Di strɛs-fri matris de absɔb smɔl smɔl drɔp ɔ klamp fɔs we nɔ de divɛlɔp intanɛnt krak. Wan kes stɔdi we dɛn bin de mek ebi ebi ikwipmɛnt dɛn sho se wi rayt trayangul rula bin kip ful wok afta we 1.5m fɔdɔm pan kɔnkrit—nɔ tan lɛk rula dɛn we nɔ gɛt strɛs we bin nid fɔ chenj am wantɛm wantɛm.
Surface Finish preservation: Stress rilif de mek di maykro-burrs ɛn edj difɔmeshɔn dɛn we de pwɛl di mɛzhɔmɛnt sɔfays dɛn. Wi han-skrep mɛtal rayt-ɛngl skwea (RA ≤1.6μm) de fri frɔm wear-indyuz skrat dɛn tru 50,000+ alaynɛshɔn chɛk, we fayn fɔ prɛsishɔn wok dɛn lɛk CMM prob kalibreshɔn.

3. Matirial-spɛsifi k advantej dɛn .

Wi de tayla strɛs rilif to ɛni matirial in nid dɛn .:

HT200 Cast Iron Models: Di prɔses de ɛp fɔ mek di vaybreshɔn damp bay 40%, we de mek dɛn fayn fɔ mek dɛn nɔ mek nɔys wokshɔp usay di kast ayɛn rula dɛn we nɔ gɛt chenj kin transmit mashin vaybreshɔn dɛn to lay lay skwea ridin dɛn.
Stenlɛs Stiɛl Mɔdal: Strɛs Rilif de pul di britlnɛs fɔ kol-fɔm stenlɛs stiɛl, mek shɔ se wi 90-digri angul skwea tul dɛn nɔ de agens kɔrɛshɔn (via 20μm nikel-krɔm pletin) ɛn mentɛn edj shapnɛs fɔ mak ay-tɛnsiɛl alɔys lɛk taytaniɔm.

4. Aplikeshɔn dɛn usay lɔng layf de kɔnt .

Aerospace Metrology: Na wan rayt-ɛngl skwea rula we gɛt strɛs (grɛd 0, ±2" tolɛreshɔn) de sav as rɛfrɛns standad insay ayrakt injin tɛst, usay dimɛnshɔnal drift kin invalidet milyɔn dala insay sɛtifikeshɔn data.
Mass prodakshɔn fiks: Insay ɔtomotiv plant dɛn, wi mɛtal rayt-ɛngl rula wit riinfɔs rib dɛn de bia wit di de klamp fɔ 200kg injin blɔk fɔ 5+ ia we nɔ go lɔs alaynɛshɔn, we de ridyus di dawt tɛm fɔ tul rikalibreshɔn bay 60%.

5. Storaen in kɔmitmɛnt fɔ bia wit di pefɔmɛns .

Kwaliti Assurans: Ɛvri strɛs-riliv mɛtal rayt-ɛngl rula de verify via 3D laser skan fɔ mit GB/T 6092 ɛn ISO 1101 standad, wit 1 ia warranty agens dimɛnshɔnal drift, tu tɛm di industri avɛrej.
Kastom Sɔlwɛshɔn: Nid 1000mm rayt trayangul rula wit anti-magnɛtik prɔpati fɔ MRI ikwipmɛnt alaynɛshɔn? Wi injinia dɛn kin yuz spɛshal strɛs rilif fɔ gi bespɔk tul dɛn insay 4–6 wik.
Tɔtɔl kɔst sevings: Wit 3x di savis layf fɔ jenɛrik rula dɛn, wi strɛs-riliv sɔlvishɔn dɛn sev wokshɔp dɛn $2,000+ ɛvri ia insay riplesmɛnt ɛn rekalibreshɔn kɔst.

Nɔ kɔmprɔmis pan prɛsishɔn we de fade ova tɛm. Storaen in strɛs-riliv mɛtal rayt-ɛngl rula tul dɛn bil fɔ di lɔng haul—we dɛn jɔyn sayɛns strɛs rilif, prɛmiɔm matirial, ɛn strɔng tɛst fɔ mek shɔ se yu mɛzhɔmɛnt dɛn de tru, tɛn ia afta tɛn ia. Elevate yu wokshɔp in rilaybiliti wit tul dɛn we dɛn mek fɔ ɔtlast ivin di tafest industrial ɛnvayrɔmɛnt dɛn.
