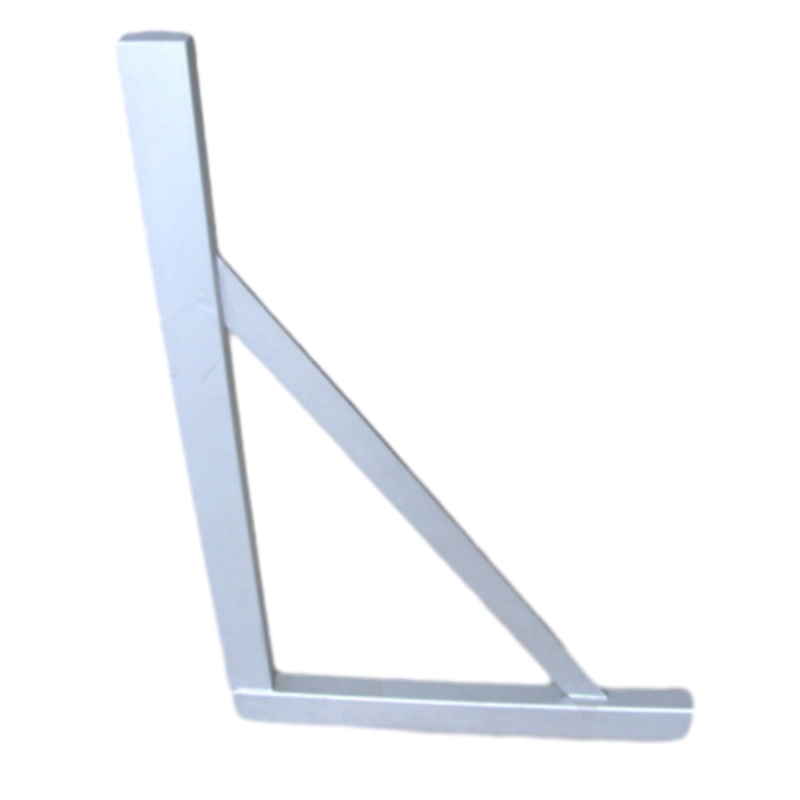

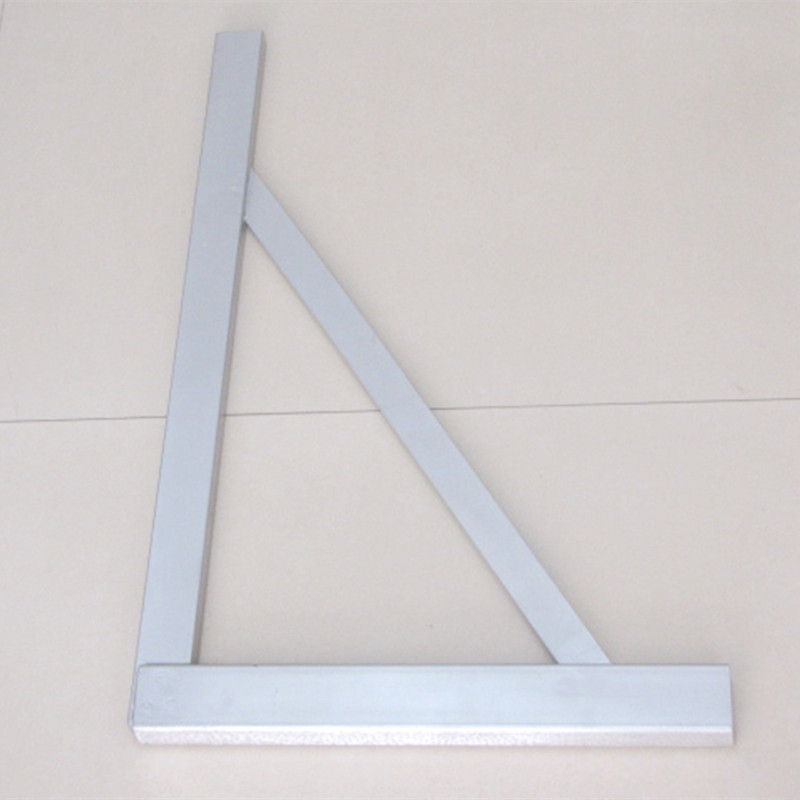

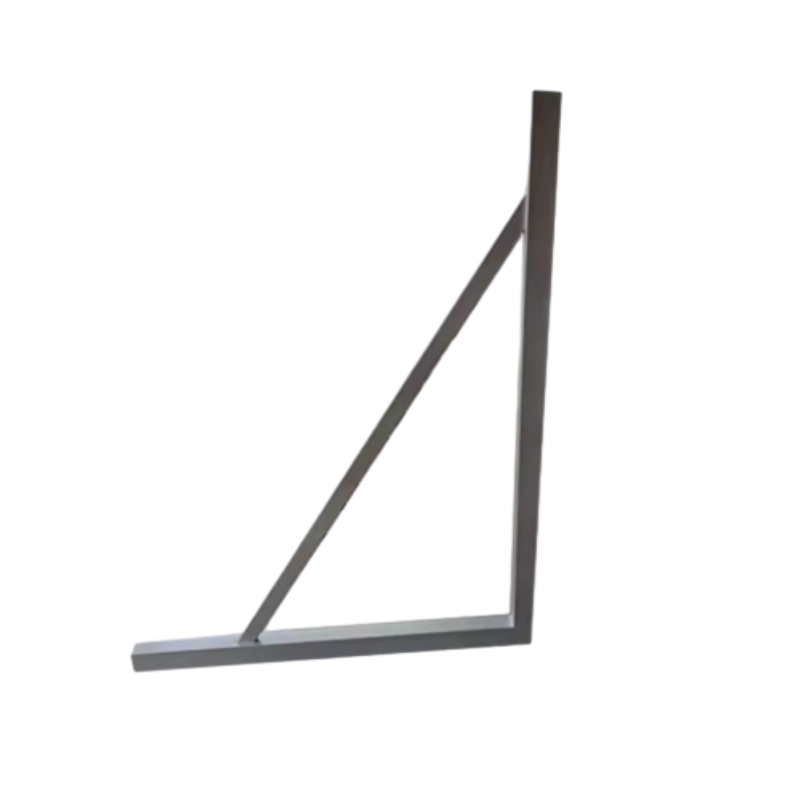

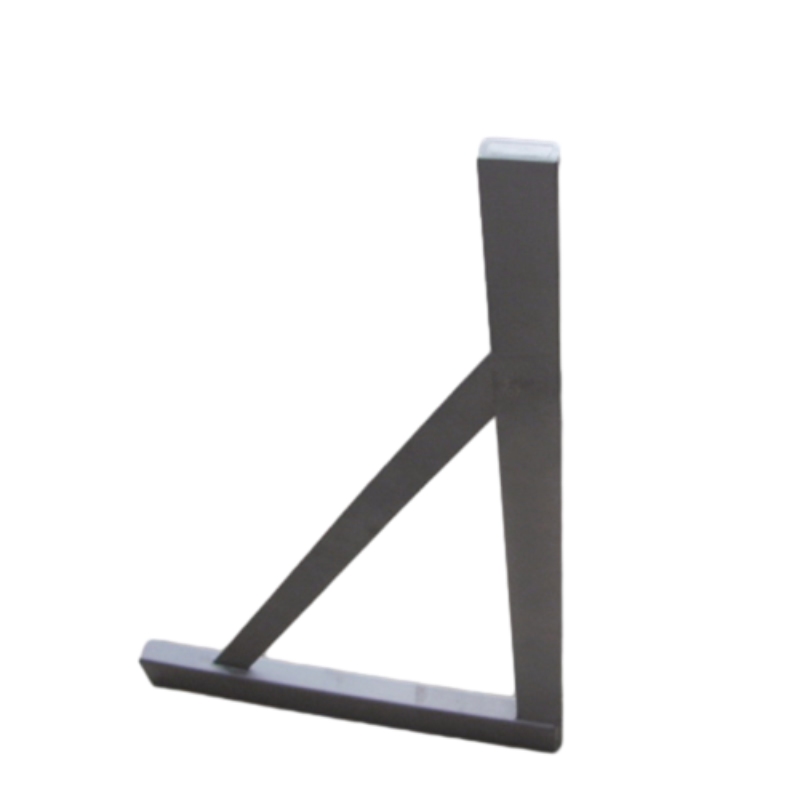

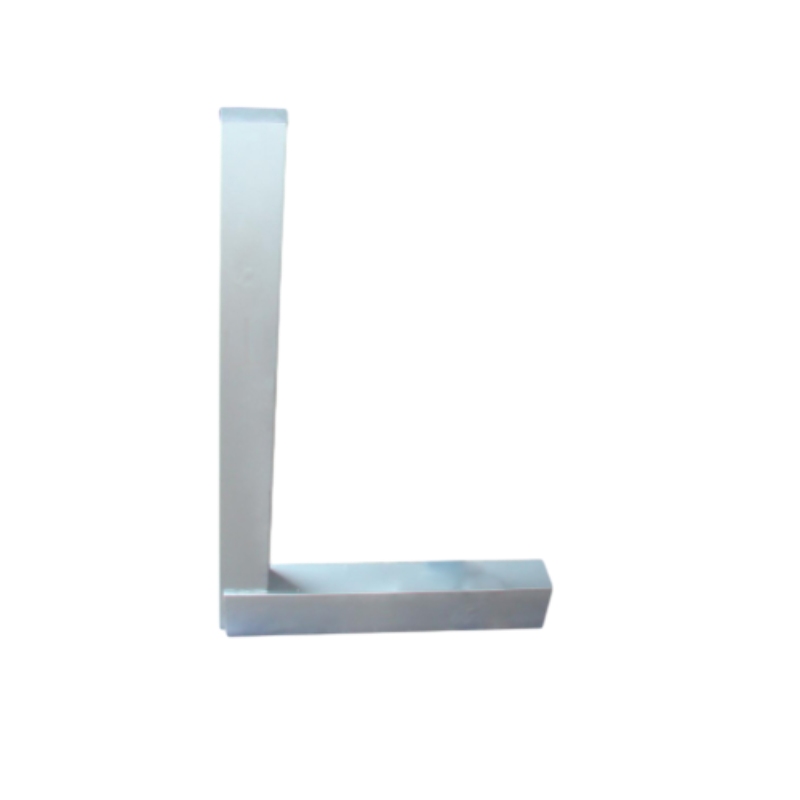

Rayt angul rula .

Ples we dɛn kɔmɔt:HEbei

Waranti: 1 Ia

Sapɔt we dɛn dɔn kɔstɔmayz:OEM

Brand Name:Storan

Mɔdal nɔmba:3003

Material:Magnɛsiɔm

Item weit:4kg

Produk Name:Magnesium-aluminium alloy Light flat ruler

Material:Magnesium-aluminium alɔy

Sayz:630*400mm

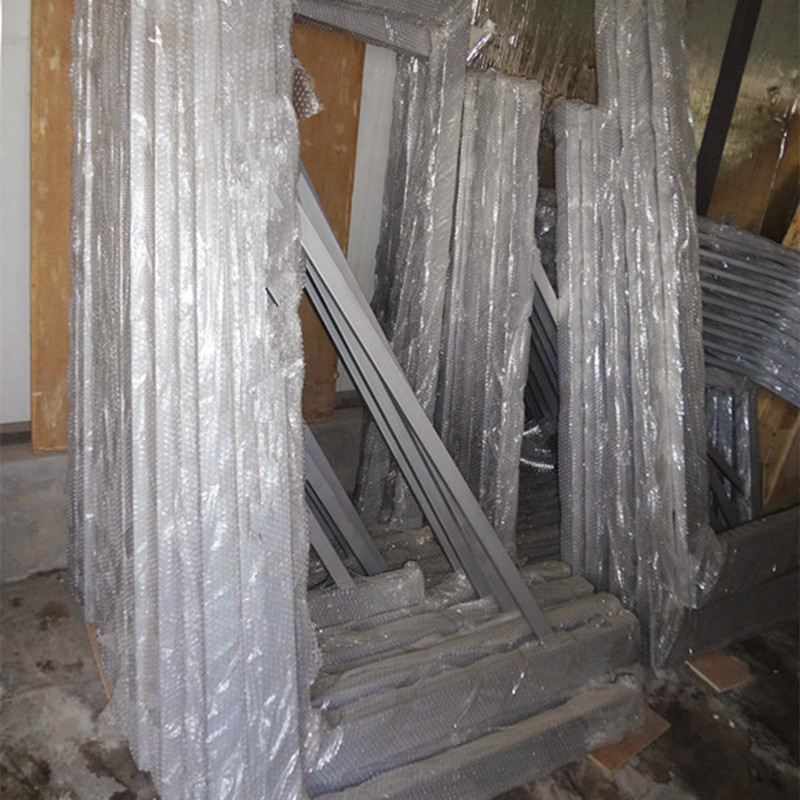

Paket:Plywood box

Sɛtifiket:ISO9001

Gret:0 gred

Shiping:Bay si ɔ ɛya

Ki wɔd:paralel rule

Prɛsishɔn:0 Gret 1Grɛd 2Grɛd

Lid tɛm .

Magnalium wide sit angle ruler 210*300mm

Magnesium aluminium rayt angul rula pefɔmans .:

1. 1.Fizikal prɔpati dɛn: 47kg/mm2.
2. 2.Magnesium-aluminium Rayt-ɛngl rula elongeshɔn: 17%
3. 3.Magnesium-aluminium Rayt-ɛngl rula bɛnd pɔynt: 110kg/mm2
4. 4.Vika dɛn trɛnk fɔ magnɛsiɔm-aluminum rayt-ɛngl rula: HV80
5.

Magnesium-aluminium rayt-ɛngl rula gɛt dɛn bɛnifit ya we de dɔŋ ya:

1. Layt wet, izi fɔ yuz ɛn izi fɔ muv.
2. 2. I nɔ izi fɔ difɔm. Di bɛnd pɔynt fɔ jenɛral stɛl matirial na 30kg/mm2, ɛn di wan fɔ jenɛral kast ayɛn na 38kg/mm2. Di bɛnd pɔynt fɔ dis matirial na 110kg/mm2, ɛn di bɛnd rɛsistɛns indeks de fa pas ɔda matirial dɛn.
3. 3. I izi fɔ kip, sɔspɛns ɛn lɛvɛl kin du we nɔ go afɛkt in stret ɛn paralel bikɔs ɔf di lɔng tɛm lɛvɛl.
4. 4. I nɔ izi fɔ sho ɔf, nɔ yuz ɔyl we yu de yuz am, nɔ yuz am fɔ lɔng tɛm, jɔs kɔt wan tin layt pan jenɛral industrial ɔyl we dɛn kip am.

Rayt angul rula prɛsishɔn gred 0–2: Vɛtikaliti tolɛreshɔn standad dɛn

Insay prɛsishɔn manufakchurin, di rayt angul rula na jɔs as ifɛktiv as in abiliti fɔ mentɛn strikt vertikal tolɛreshɔn. Storaen de difayn tri prɛsishɔn gred dɛn (0, 1, 2) fɔ wi mɛtal 90 digri rula sɔlvishɔn dɛn, ɛni wan pan dɛn ɛnjɛnɛri fɔ mit spɛshal industrial dimand dɛn—frɔm ɛrospɛs mɛtrɔlɔji to jenɛral mashin. Ɔndastand dɛn gred ya de mek shɔ se yu pik di rayt tul fɔ yu vertikaliti inspekshɔn nid, bak bay ISO 1101 ɛn GB/T 6092 kɔmplians.

1. Gret 0: Ultra-hay prɛsishɔn (±2.")

Di Gold Standard fɔ Kritikal Aplikeshɔn dɛn .:

Tolerance: de mentɛn 90° vertikaliti insay ±2 arksɛkɔnd (±0.0005mm/m), we dɛn verify via laser intafɛromɛtri.
Materials: Premium HT200 cast iron (fɔ vaybreshɔn damping) ɔ magnɛsiɔm aluminiɔm alɔy (fɔ laytwɛt rigiditi), ɔl tu di strɛs-riliv na -80°C fɔ pul 95% pan di intanɛnt strɛs.

Aplikeshɔn dɛn .:

Aerospace Component Testing: Wan Storaen 90 Digri Angle Rula (Gred 0, 630x400mm) de mek shɔ se jet injin brakɛt dɛn de alaynɛd insay ±0.001mm/m, we de mek di taya nɔ wok fayn frɔm misalayn.
CMM kalibreshɔn: de sav as rɛfrɛns standad fɔ kɔdinɛt mɛzhɔmɛnt mashin dɛn, usay sab-maykron mistek dɛn kin invalidɛt sɛtifikeshɔn data fɔ mɛdikal divays implant dɛn.

2. Gret 1: Indastrial prɛsishɔn (±5 .")

Balans akkurayt ɛn versatility fɔ mɔs mashin wok dɛn .:
Tolerance: ±5 arcseconds (±0.0015mm/m), we fayn fɔ ISO 1101-kɔmpliant vertikaliti chɛk.
Disain Fitur: Riinfɔs rib dɛn pan mɛtal 90 digri rula mɔdel dɛn (3000x2000mm) Distribyut 200kg+ lod dɛn we nɔ gɛt difɔmeshɔn, we wan 5μm anti-kɔroshɔn kɔtin de protɛkt agens kolant ɛksplɔshɔn.

Aplikeshɔn dɛn .:

Automotive Fixturing: Wan Storaen rayt angle rula (Gred 1, 1000x630mm) de mek shɔ se di injin blɔk bor dɛn de pepɛndikul to di mating sɔfays dɛn we de insay ±0.01mm, we de ridyus di asɛmbli riwɔk bay 40%.
CNC mashin alaynɛshɔn: verify spindle verticality pan mil mashin, impruv sɔfays finish (RA ≤1.6μm) ɛn ɛkstend tul layf bay 25%.

3. Gret 2: Jɛnɛral-pɔpɔs prɛsishɔn (±10 .")

Riliable fɔ nɔ-kritikal alaynɛshɔn ɛn layout task dɛn .:

Tolerance: ±10 arcseconds (±0.003mm/m), we fit fɔ GB/T 6092 Klas 2 rikwaymɛnt dɛn.
Material Options: Kɔst-ɛfɛktiv kabɔn stiɛl (fɔ ebi-diuti ɛnvayrɔmɛnt) ɔ anodized aluminiɔm (fɔ kɔrɛshɔn rɛsistɛns insay tɛkstayl wokshɔp), we weigh jɔs 5kg fɔ 1500x1000mm mɔdel dɛn.

Aplikeshɔn dɛn .:

Hevi Ikwipmɛnt Asɛmbli: Wan Storaen Multi Angle Edge Rula (Grɛd 2, 2000x1500mm) de chɛk di vertikaliti fɔ buldoza bled mawnt dɛn, we de mek shɔ se 90° alaynɛshɔn fɔ di bɛst we fɔ displeys di grɔn.
Sheet Metal Fabrication: Gayd dɛn 90° Bɛnd mak dɛn pan 5mm-tik stɛl shit dɛn, we de ridyus trial-ɛn-ɛrɔd ajɔstmɛnt dɛn bay 30% pan kɔmpawnd manufakchurin.

4. Storaen in prɛsishɔn ɛshyurishɔn .

Kalibreshɔn Trasabiliti: Ɛvri rayt angul rula inklud wan CMM-jɛnereshɔn sɛtifiket, we dɛn kin tray fɔ gɛt nashɔnal mɛtrɔlɔji standad.
Kastom gred dɛm: Nid wan Gret 0.5 rula fɔ sɛmi-kritikal aerospace sabkomponent dɛm? Wi injinia dɛn kin tayla tolerans to yu spɛsifikɛshɔn dɛn, we dɛn kin sɛn insay 4–6 wik.
Waranti: 1-ia kɔvarej agens vertikaliti drift, dɛbul di industri avɛrej, mek shɔ se lɔng tɛm rilaybiliti ivin insay 40°C wokshɔp ɔt.

If yu nid di sab-maykron akkuracy fɔ gred 0 fɔ aerospace, di balans pefɔmɛns fɔ gred 1 fɔ ɔtomotiv mashin, ɔ di kɔst-ɛfɛktiv rilaybiliti fɔ gred 2 fɔ jenɛral wok dɛn, Storaen in prɛsishɔn-grɛd rayt angul rula sɔlvishɔn dɛn de gi unmatched vertikal kɔntrol. Pe wit rayt angul protraktɔ aksesɔri fɔ kɔmprɛhɛnsif angul inspekshɔn, ɛn trɔst insay wi injinɛri ɛkspɛriɛns fɔ mit di striktest industrial standad—we ɛvri digri fɔ prɛsishɔn kɔnt.

Rayt angul rula stɔrɔj tips: hang vs. ɔrizɔntal plesmɛnt bɛst prɔsis

Fɔ kip fayn fayn wan na impɔtant tin fɔ mek yu kɔntinyu fɔ gɛt di prɛsishɔn ɛn di lɔng layf we yu rayt angul rula gɛt. Storaen enjinia dɛn in tul dɛn—frɔm laytwɛt mɛtal 90 digri rula mɔdel dɛn to ebi-diuti malti angul edj rula sɔlvishɔn dɛn—wit stɔrɔj-frenli dizayn dɛn, bɔt fɔ fala dɛn bɛst prɔsis dɛn ya de mek shɔ se yu invɛstmɛnt de kɔrɛkt fɔ ia. Na dis na aw fɔ pik bitwin hang ɛn ɔrizɔntal plesmɛnt bays pan yu tul tayp ɛn wokshɔp nid dɛn nid:

1. Hanging storage: I fayn fɔ laytwɛt & smɔl-to-midul rula dɛn

I fayn fɔ 90 digri angul rula mɔdel dɛn ≤1500x1000mm (ɛgz., magnɛsiɔm aluminiɔm ɔ anodized aluminiɔm):

Wetin mek i de wok:Hangin de pul graviti strɛs pan di rula in ed dɛn, we de mek di smɔl wɔpin we kin apin wit ɔrizɔntal stɔrɔj. Storaen in mɛtal 90 digri rula (5kg fɔ 1000x630mm) gɛt riinfɔs hanging ol dɛn (20mm dayamita, kɔntasɔnk fɔ protɛkt ed dɛn) fɔ sikyuɔr mawntin.

Aw fɔ du am .:

Yuz anti-vaybreshɔn huk dɛn (inklud wit Storaen rula dɛn) fɔ hang di tul vertikal wan pan wan rɛk we dɛn kin put na di wɔl, mek shɔ se di 90° edj fes dɛn de go dɔŋ fɔ avɔyd fɔ gɛda dɔst.
Lɛf 50mm kliarens bitwin rula dɛn fɔ mek dɛn nɔ gɛt aksidɛnt impak—kritikal fɔ mek dɛn kɔntinyu fɔ gɛt di ±2" prɛsishɔn fɔ gred 0 rayt angul rula mɔdel dɛn.

Di bɛst fɔ: Wokshɔp ɛnvayrɔmɛnt dɛn wit limited flo spɛs, ɔ we dɛn de kip rayt angul protɛkta-kɔmpatibl rula dɛn we nid fɔ gɛt kwik akses fɔ inspekshɔn ɔltɛm.

2. Ɔrizɔntal Plesin: Rikɔmɛnd fɔ Ɛvi-Duti & Big Rula dɛn

Ideal fɔ kast ayɛn malti angul edj rula mɔdel dɛn ≥2000x1500mm (ɛgz., HT200 Kast Ayɔn, 180hb Hadnɛs):

Wetin mek i de wok:Horizontal storage de sheb wet ivin akɔdin to di rula in bays, we de leva Storaen in strɛs-riliiv dizayn (550°C anil fɔ 4 awa) fɔ mek di dimɛnshɔnal stebiliti. Wan 3000x2000mm rula we dɛn sɔpɔt na tri poɛnt (ɛnd + sɛnta) de ɛkspiriɛns 70% less sag pas ɔda we dɛn we dɛn nɔ sɔpɔt.

Aw fɔ du am .:

Yuz fom-layn shelf (10mm tiknes, anti-statik) fɔ kusɛn di rula in kɔntakt sɔfays, protɛkt di an-skrɛp finish (ra ≤1.6μm) fɔ prɛsishɔn rayt angul rula mɔdel dɛn.
Stɔ na say dɛn we dɛn kin kɔntrol di tɛmpracha (20°C ±2°C) fɔ mek di tɛmal ɛkspɛnshɔn nɔ bɔku—espɛshali impɔtant fɔ di magnɛsiɔm aluminiɔm rula dɛn, we kin kip 110kg/mm2 de gi trɛnk ivin insay 40°C ɔt we dɛn sɔpɔt am fayn fayn wan.

Best for:Large-scale wokshop setups ɔ we yu de kip rula dɛn nia rayt angul protraktɔ aksesɔri, mek shɔ se izi alaynɛshɔn fɔ kɔmpleks angul inspekshɔn.

3. Yunivasal bɛst we fɔ ɔl di kayn rula dɛn .

Klin Bifo yu kip am: Wap wit Storaen in anti-rɔst ɔyl (5μm piklin ɔyl kɔtin) fɔ protɛkt frɔm di kɔlant rɛsɛdyu—kritikal fɔ mentɛn di kɔrɛshɔn rɛsistɛns fɔ aluminiɔm 90 digri angul rula mɔdel dɛn na marin ɔ humid ɛnvayrɔmɛnt.
Avɔyd fɔ stak: Nɔ ɛva pail rula dɛn vertikal, as ivin 5kg prɛshɔn kin difɔm di 90° edj fɔ nɔ-stress-riliv tul dɛn—Storaen in Gret 1 Mɛtal 90 digri rula de agens dis kayn difɔmeshɔn bɔt stil de bɛnifit frɔm singl-layer stɔrɔj.
Lebul klia wan: Mak stɔrɔj ples dɛn wit prɛsishɔn gred (0/1/2) ɛn matirial tayp to kwik tul sɛlɛkshɔn, mɔ we yu de yuz malti angul edj rula vɛryɔnt fɔ spɛshal wok dɛn lɛk CNC mashin vertikaliti kalibreshɔn.

4. Storaen in stɔrɔj-ɛnhans dizayn ficha dɛn .

Hanging hol reinforcement: Ɔl di rula dɛn ≥1000mm inklud stɛl-rɛinfɔs hangin pɔynt dɛn, we dɛn tɛst fɔ sɔpɔt 5x di tul in wet we nɔ gɛt difɔmeshɔn—i fayn fɔ ripɔzishɔn ɔltɛm di tɛm we dɛn de inspekshɔn pan di aerospace.
Anti-Slip Fut (fɔ yuz ɔrizɔntal yuz): Kast ayɛn mɔdel dɛn gɛt rɔba ɛnd kap dɛn we de grip shelf dɛn fayn fayn wan, we de mek dɛn nɔ gɛt aksidɛntal slayd dɛn we go pwɛl di rula in mɛzhɔmɛnt ɛj we dɛn de du ebi ebi ikwipmɛnt asɛmbli wok dɛn.
Kastom Storage Solutions: Nid wan mobayl kat fɔ yu rayt angul protraktɔ ɛn multi angle edj rula sɛt? Wi tim de disayn bespok rek wit fom insert, deliv in 4–6 wiks fɔ seamless intagreshɔn insay yu wokflɔ.

If yu hang laytwɛt 90 digri angul rula fɔ kwik akses ɔ kip wan hevi-duti rayt angul rula ɔrizɔntal fɔ maksimal stebiliti, fɔ fala dɛn prɔsis ya de mek shɔ se yu Storaen tul de kɔrɛkt ɛn rɛdi fɔ yuz. Wi dizayn dɛn we dɛn dɔn kip fɔ kip tin dɛn—frɔm di ol dɛn we dɛn dɔn mek strɔng fɔ hang to di tin dɛn we dɛn kin yuz fɔ mek yu strɛs—kɔmplimɛnt di rayt we fɔ mek dɛn kɔntinyu fɔ de, fɔ mek di layf we yu prɛsishɔn inschrumɛnt dɛn de liv lɔng ɛn fɔ protɛkt yu invɛstmɛnt insay kwaliti. Stɔ Smat, mɛzhɔ smat wit Storaen.
